A 2.5 inch exhaust pipe usually needs an exhaust tip with a 2.5 inch inlet, but measure the pipe and compare it with the tip's inlet inside diameter before ordering. The outlet size, length, cut style and attachment type also matter, so a 2.5 inch inlet is the starting point, not the whole fitment check.
Quick answer
| Fitment question | Practical answer |
|---|---|
| Pipe size | If the tailpipe measures 2.5 inches at the end, start with a tip listed with a 2.5 inch inlet. |
| Measurement to compare | Compare the pipe at the connection point with the tip inlet inside diameter. MagnaFlow lists exhaust tip specs such as inlet inside diameter, length, attachment type and outlet size on individual tip pages. |
| Outlet size | Choose the outlet for bumper clearance and appearance first. Do not expect a guaranteed sound change from outlet size alone. |
| Length | Pick a length that covers the pipe end without hitting the bumper, valance, diffuser or trim. |
| Attachment | Clamp-on is removable and easier to test fit. Weld-on is cleaner and more permanent when installed correctly. |
| Best next step | If clearance is tight, measure first or ask a shop to test fit before ordering. AZ Motorsport can help through the contact page. |
Why the inlet size matters most
Exhaust tip sizing starts at the inlet because that is the part that slides over, clamps to or welds to the tailpipe. For a 2.5 inch pipe, the tip you look for will normally be described with a 2.5 inch inlet. One example spec page lists a tip with a 2.5 inch inlet inside diameter, a 5.5 inch length, a 3.5 inch outlet size and a weld-on attachment type. Another lists a 2.5 inch inlet inside diameter with a clamp-on attachment type.
That does not mean every 2.5 inch inlet tip fits every car. The pipe can be cut short, angled, ovalized, rusty, modified or too close to the bumper opening. The tip also has to clear the bumper, diffuser, tow hook cover, parking sensors and any surrounding trim.
If you are changing more than the finish at the end of the car, start with the full exhaust layout instead of only the tip. You can browse AZ Motorsport exhaust systems at exhaust systems.

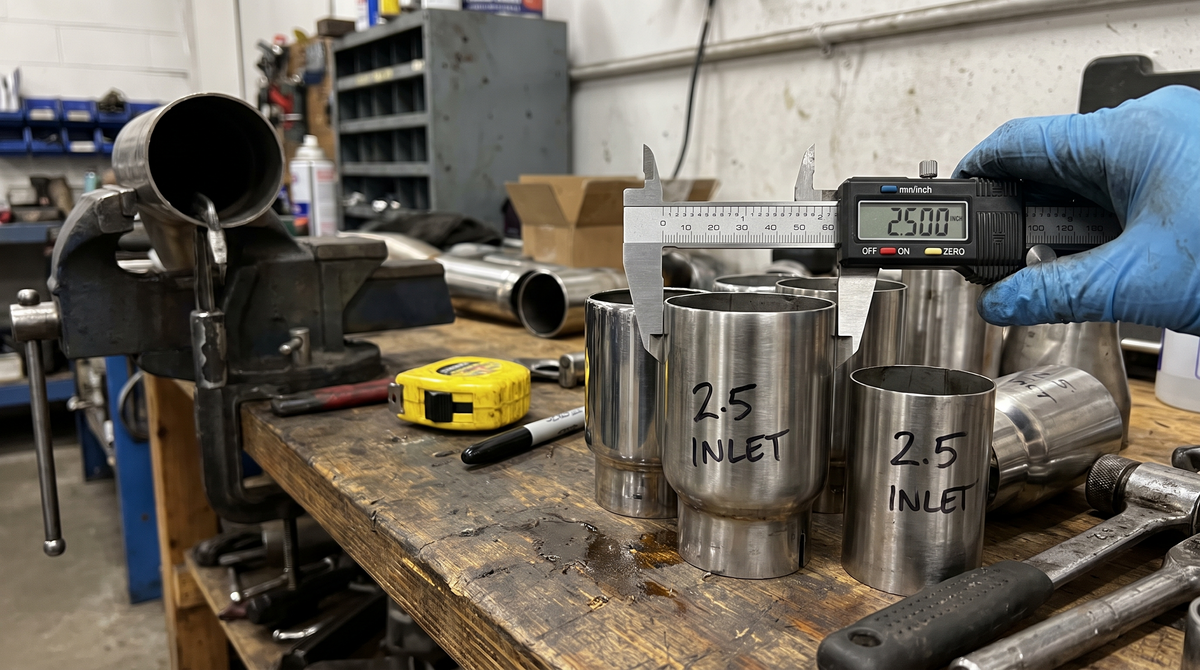

Measurement checklist before you order
- Let the exhaust cool completely.
- Measure the tailpipe at the exact point where the tip will attach.
- Measure across the pipe as straight as possible. If the pipe is not perfectly round, measure in more than one direction.
- Compare that number with the tip's inlet inside diameter.
- Measure the available length from the pipe end to the bumper exit.
- Check how far the tip would stick out once installed.
- Measure the bumper or diffuser opening, not only the pipe.
- Look at the tip shape. Round, oval, rectangular and angle-cut tips use space differently.
- Decide whether you want clamp-on or weld-on before buying.
- If the car has a tight rear valance, aftermarket diffuser or previous exhaust work, test fit before final tightening or welding.
Inlet diameter, outlet size and length explained
The inlet diameter is the connection size. On many product pages, this is shown as inlet inside diameter, which is the number you compare against the pipe end.
The outlet size is the visible end of the tip. A 2.5 inch inlet can still have a larger outlet, such as 3.5 inches, 4 inches or more, depending on the tip design. The larger outlet changes the visual finish and may change how the rear bumper looks, but it does not guarantee a specific exhaust note.
Length is the distance the tip occupies front to back. A tip that is too short may not cover the pipe the way you want. A tip that is too long may stick out too far or contact the bumper opening once the exhaust moves under heat and vibration.
Clamp-on versus weld-on tips
A clamp-on tip is the easier option when you want a reversible install. It still has to match the pipe, sit square and be tightened properly. Recheck it after a few heat cycles, especially if the exhaust pipe surface was dirty, rusty or uneven.
A weld-on tip is more permanent. It can look cleaner and stay secure, but it needs correct alignment before welding because adjustment afterward is harder. Welding is usually the better choice when the car already has custom exhaust work or when the tip needs to sit in a very specific position inside a bumper opening.
For local fitment help around Brossard or Montreal, use contact page before ordering if you are not sure about the measurement or clearance.
Common fitment mistakes
| Mistake | Why it causes problems |
|---|---|
| Buying by outlet size only | The visible outlet can be larger than the inlet. The inlet is what has to connect to the pipe. |
| Ignoring bumper clearance | A tip can match the pipe and still be too wide, too long or poorly positioned for the bumper opening. |
| Assuming universal means guaranteed | Universal means the part is not made for one exact vehicle. It still needs measurement and installation judgment. |
| Forgetting exhaust movement | Exhaust systems move with heat, vibration and engine load. Leave clearance around trim. |
| Clamping over rust or old welds | A rough surface can stop the clamp from seating evenly. |
FAQ
What size tip fits a 2.5 inch exhaust pipe?
Start with an exhaust tip that has a 2.5 inch inlet. Then confirm the actual pipe measurement, the tip length, the outlet size and the bumper clearance before ordering. A 2.5 inch inlet is the right starting point, but it is not a universal fitment guarantee.
Do I measure the inside or outside of the pipe?
For tip fitment, measure the pipe where the tip will attach and compare it with the tip's listed inlet inside diameter. If the pipe end is damaged, out of round or covered in old weld material, measure more than once and clean the area before test fitting.
Does the outlet size change the sound?
Do not choose an outlet size expecting a guaranteed sound change. Outlet size mostly changes the look and the way the rear of the car is finished. If your goal is more sound, tone or flow, look at the exhaust system itself, not only the tip.
How long should an exhaust tip be?
It should be long enough to cover the pipe end and sit where you want visually, but short enough to avoid the bumper, diffuser and surrounding trim. Measure the available space before buying because length can matter as much as inlet diameter on cars with tight rear openings.
Can a tip be too big for my bumper?
Yes. A tip can have the correct 2.5 inch inlet and still be too large at the outlet, too long, or shaped wrong for the bumper opening. Always measure the opening and leave clearance for exhaust movement and heat.
Do clamp-on tips stay tight?
Clamp-on tips can stay tight when the inlet size matches, the pipe surface is clean and the clamp is tightened correctly. They are still worth checking after a few heat cycles. If the pipe is rusty, tapered, ovalized or previously modified, a clamp-on tip may not seat cleanly.
Is welding an exhaust tip better than clamping it?
Welding is better when you want a permanent, clean and precisely aligned installation. Clamping is better when you want easier removal or a simple test fit. The better choice depends on the car, the pipe condition and how tight the bumper clearance is.
Will an exhaust tip fit every car?
No. Even universal tips need the right inlet size, length, outlet shape and clearance. Some cars also have trim, diffusers or modified exhaust sections that make tip fitment more specific. When in doubt, measure first or contact AZ Motorsport for help.
