A high-flow cat is a catalytic converter designed to flow exhaust gas with less restriction than a typical stock converter. It keeps a catalyst in the exhaust path, but it is not the same as a stock cat, a catless pipe, or a full downpipe by itself.
That simple definition matters because buyers often ask the wrong follow-up question. A high-flow cat is not a magic part that makes every car legal, quiet, odour-free and check-engine-light safe. It is a tradeoff part, so the right answer depends on your car, the exact exhaust layout, the sensor strategy, the tune, the catalyst quality and how you plan to use the vehicle.
Quick answer
| Question | Short answer | What to check before buying |
|---|---|---|
| What is it? | A less restrictive catalytic converter. | Whether the part is a converter only or part of a catted downpipe. |
| Main benefit | Better flow than a restrictive stock cat, while keeping a catalyst in the system. | Your power goal, sound goal and road-use expectations. |
| Sound change | Usually louder than stock, but not always dramatically. | Full exhaust layout, resonators, mufflers and valves. |
| Smell change | It may smell more than stock, especially at cold start or idle. | Catalyst design, tune, fuel, engine condition and install quality. |
| Check engine light | Possible on some cars. Not guaranteed either way. | O2 sensor placement, catalyst efficiency monitoring and software strategy. |
| Legal answer | Do not assume it is legal or inspection-safe. | Local rules, intended use and documentation for the exact part. |
| Tune required? | Sometimes yes, sometimes no. | Vehicle, sensor logic, downpipe design and current modifications. |
| Best next step | Compare catted downpipe options and ask before ordering. | Start with AZ Motorsport downpipes: https://azmotorsport.ca/collections/downpipes |
What a catalytic converter does
A catalytic converter sits in the exhaust stream and helps reduce certain pollutants before exhaust gas leaves the tailpipe. It does this through catalyst material inside a core or substrate. On a modern performance car, the catalytic converter is also part of the wider engine-management system because oxygen sensors and catalyst-monitoring logic may watch what happens before and after the converter.
That is why changing the catalyst is more complicated than changing a rear muffler. The part is not only a flow restriction. It can also be tied to emissions equipment, sensor readings, check engine lights, odour, sound, heat and road-use rules.
What makes a cat high-flow?
In plain language, a high-flow cat is built to reduce restriction compared with a more restrictive original converter. The goal is to let exhaust gas pass through with less resistance while still keeping catalyst material in the system.
That does not mean every high-flow cat is the same. Quality, size, placement, heat management, sensor placement and the rest of the exhaust design all matter. A high-flow cat that works well on one setup does not automatically work the same way on another.
For shoppers, the more useful question is this: what does the complete part include? Sometimes people say high-flow cat when they mean the catalyst core. Sometimes they mean a catted downpipe or front pipe assembly that includes a high-flow catalyst. That distinction affects fitment, installation, sound, tuning and CEL risk.

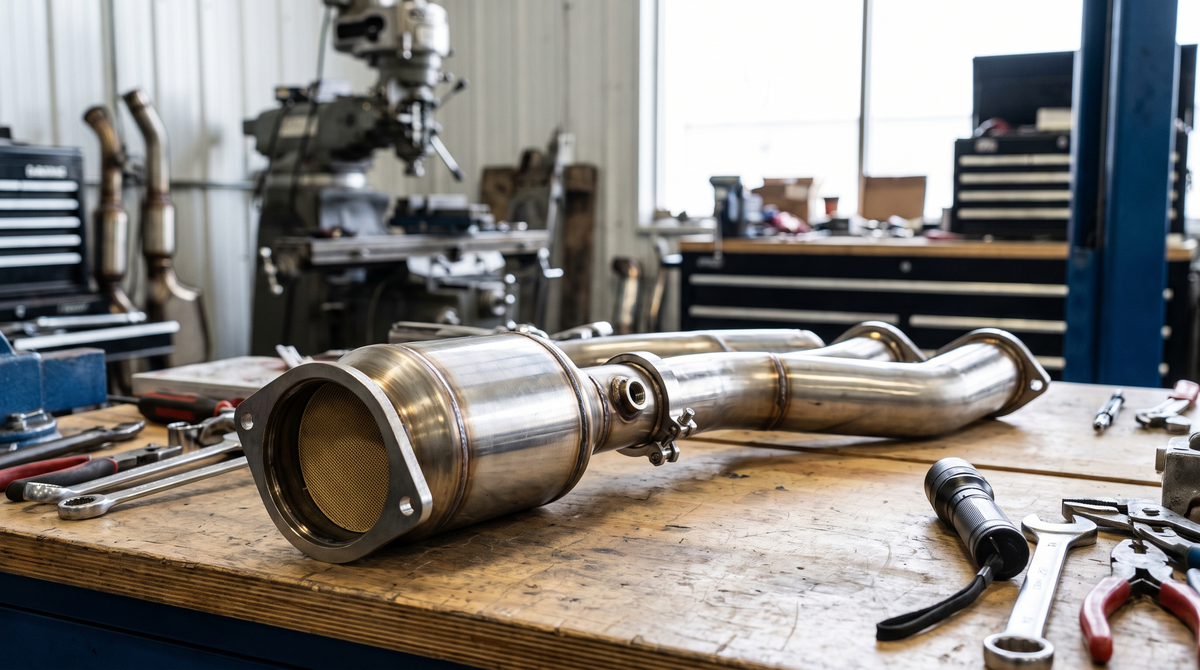

Is a high-flow cat the same as a downpipe?
No. A high-flow cat is the catalytic converter. A downpipe is a pipe section in the exhaust system, often near the turbocharger on turbocharged cars. A catted downpipe can include a high-flow catalytic converter inside it, but the converter and the downpipe are not the same thing.
This is where shopping language gets confusing. A product may be described as:
- A high-flow cat.
- A catted downpipe.
- A high-flow catted downpipe.
- A front pipe with high-flow cats.
- A catless downpipe, which has no catalyst in that section.
If you are comparing AZ Motorsport downpipe options, start here: https://azmotorsport.ca/collections/downpipes. If the product wording is not clear for your exact car, ask before ordering: https://azmotorsport.ca/pages/contact.
Stock cat vs high-flow cat vs catless pipe
| Option | What it means | Main reason buyers consider it | Main tradeoff |
|---|---|---|---|
| Stock cat | Factory catalytic converter and factory exhaust layout. | Quiet operation, original equipment fit and original monitoring strategy. | May be more restrictive than a performance setup wants. |
| High-flow cat | A catalyst designed for more exhaust flow than a restrictive stock converter. | Better flow while keeping a catalyst in the exhaust path. | Sound, smell, CEL risk and legal status still depend on the car and part. |
| Catless pipe | A pipe section with no catalytic converter in that location. | Maximum flow and louder character in some builds. | More smell, more emissions concerns, higher CEL risk and road-use concerns. |
The right choice is not always the most aggressive one. If the car is driven on the street, if you care about odour, if you want fewer monitoring problems, or if you want a more balanced sound, a catted option may be the better conversation to have first.
If the vehicle is track-only, the discussion can be different. Even then, you should confirm the rules for the event, the venue and the exact vehicle setup before assuming a catless part is acceptable.
How a high-flow cat changes sound
A high-flow cat can make the exhaust louder, sharper, deeper, raspier, or more open depending on the rest of the system. The catalyst is only one part of the sound path. Resonators, mufflers, exhaust valves, pipe diameter, turbo layout, engine type and tune all change the final result.
A useful expectation is this: a high-flow cat often makes the car more noticeable than stock, but it does not define the whole sound by itself. A catted downpipe paired with a quiet rear exhaust can feel very different from the same downpipe paired with a louder full exhaust system.
If you are changing more than the downpipe area, compare the exhaust-system options too: https://azmotorsport.ca/collections/exhaust-systems.
Will a high-flow cat cause a check engine light?
It can. It also might not. The honest answer is car-dependent.
Many modern cars monitor catalyst efficiency through oxygen sensors. If the new catalyst, sensor location, exhaust flow, tune, or installation changes what the ECU expects to see, a check engine light is possible. That is why buyers search for things like O2 sensor spacers, catalyst efficiency codes and tune requirements.
Do not treat a spacer, a tune, or a catted part as a universal answer. Some vehicles are sensitive. Some setups need software planning. Some parts are intended for off-road or track use only. Confirm the product, the vehicle and the intended use before buying.
Does a high-flow cat smell more than stock?
It may. A high-flow cat can allow more exhaust smell than the original converter, especially during cold starts, idle, rich-running conditions, aggressive tuning, or when the catalyst is not hot yet.
That does not mean every catted performance setup smells bad. It means odour is not something a seller should promise away with one sentence. Engine condition, fuel, tune, catalyst quality, warm-up behavior and exhaust leaks can all change what you smell around the car.
If smell is a major concern because the car is street-driven, parked in an indoor garage, or used around family, say that before choosing the part.
Is a high-flow cat legal?
Do not assume it is legal just because it has a catalytic converter. Road-use rules, emissions requirements, inspection expectations and tampering rules can depend on the jurisdiction, the vehicle, the year, the certification status of the part and how the vehicle is used.
For Quebec and Montreal drivers, this is where local advice matters. A shop can help you understand fitment and installation, but legal compliance is not something to guess from a product nickname. If the part is for track use, off-road use, or a specific motorsport context, treat it that way.
The safest buying question is not “does it have a cat?” It is “is this exact part appropriate for my exact car and intended use?”
Do you need a tune with a high-flow cat?
Sometimes yes, sometimes no. It depends on the car, the downpipe or front-pipe design, the oxygen-sensor strategy, the ECU calibration, the catalyst location and the rest of the modifications.
A tune may be part of a larger performance plan, especially when the car is moving more air than stock. But you should not buy a high-flow cat assuming a tune will automatically solve every CEL, smell, drivability, legality, or inspection question. Software and hardware need to be planned together.
Before ordering, share the car details, current modifications, intended use and sound goals with AZ Motorsport: https://azmotorsport.ca/pages/contact.
When a high-flow cat makes sense
A high-flow cat can make sense when you want a more performance-oriented exhaust path but do not want to remove the catalyst from that section. It is often the middle-ground conversation between staying fully stock and going catless.
Consider a high-flow catted setup if you care about:
- Keeping a catalyst in the system.
- Reducing restriction compared with a limiting stock part.
- Building around a cleaner streetable sound than a very aggressive catless setup.
- Managing smell better than a catless setup might.
- Planning the car as a complete package, not just chasing the most extreme part.
Consider slowing down before buying if you are only trying to copy a forum build without knowing the tune, sensor setup, fuel, use case and local road expectations.
Questions to ask before buying
Use this checklist before choosing a high-flow cat, catted downpipe, or catless pipe:
- Is this part a catalyst only, or a full catted downpipe or front pipe?
- Is the vehicle street-driven, track-only, or both?
- What does the product say about intended use?
- Does the car monitor catalyst efficiency after the converter?
- Has this setup caused CEL issues on similar cars?
- Is a tune required, recommended, or not needed for this exact setup?
- How much sound change do you actually want?
- How much exhaust smell can you tolerate?
- Will the rest of the exhaust stay stock or change too?
- Who will install it and inspect the final fitment?
A good answer needs the whole picture. The best part for a summer track build may not be the best part for a daily driver that starts in a Montreal condo garage in February.
FAQ
What is a high-flow cat?
A high-flow cat is a catalytic converter designed to restrict exhaust flow less than a typical stock converter. It keeps catalyst material in the exhaust path, but results for sound, smell, CEL risk, tune requirements and legality depend on the exact car and part.
Is a high-flow cat the same as a downpipe?
No. The high-flow cat is the catalytic converter. A downpipe is a larger pipe section that may contain a high-flow cat. A catted downpipe includes a catalyst. A catless downpipe does not include a catalyst in that section.
Does a high-flow cat make my exhaust louder?
Usually it can, but the amount and tone depend on the rest of the exhaust. Mufflers, resonators, valves, pipe size, engine layout and tune can all change whether the result is deeper, sharper, raspier, or only slightly louder.
Will a high-flow cat cause a check engine light?
It can on some vehicles. Many cars monitor catalyst efficiency through oxygen sensors, so sensor placement, catalyst design, ECU strategy, tune and installation quality can all matter. Do not assume every high-flow cat will avoid a check engine light.
Does a high-flow cat smell more than stock?
It may smell more than stock, especially during cold start, idle, rich-running conditions, or before the catalyst is hot. A catted setup usually has less smell potential than a catless setup, but no honest answer is universal.
Is a high-flow cat legal?
Do not assume that it is legal, inspection-safe, or emissions-compliant because it has a catalyst. The answer depends on local rules, vehicle year, certification status, intended use and the exact part. Ask before buying and check the rules that apply where the car is used.
Do I need a tune with a high-flow cat?
Maybe. Some cars and setups need software planning, especially when the high-flow cat is part of a downpipe change. Others may not require a tune for basic operation. The right answer depends on the vehicle, hardware, sensors and current modifications.
Should I choose high-flow or catless?
Choose high-flow if you want a performance-oriented setup that still keeps a catalyst in the exhaust path. Choose catless only after confirming intended use, smell, noise, CEL risk, tuning and rulebook concerns. For most street-driven buyers, the catted conversation is usually the better starting point.
